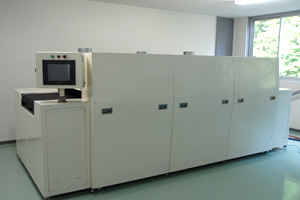

IR+ Circulating Hot-air Conveyor System Drying Furnace

IR+ Circulating Hot-air Conveyor System Drying Furnace
Features of testing equipment
  1. 01.Hot-air drying can be combined with far-infrared radiation. Individual operation is available.
  2. 02.Supports switching between hot-air circulating system (with ventilation at desired setting) and one-way system (forced air followed by total ven tilation).
  3. 03.Switching between continuous operation and tact operation is available.

Specifications

Furnace dimensions usable dimension for heating3000mm
Furnace width Belt width 800mm
Furnace height Aperture size 120mm
Temperature Hot-air circulating system/maximum 250℃　One-way system/maximum 150℃
Heater capacity IR panel heater：9.9KW×3 zones　　Hot-air：20KW×3 Zone
Forced-air blower Maximum flow rate 43m3/min(blower alone) Air volume controllable by inverter control
Evacuation blower Maximum flow rate 65m3/min(blower alone) Control air volume with inverter control
Conveyor belt Teflon mesh belt　800mm width
Transit time in the furnace (1)6sec–60sec (2)55sec–500sec
Controls IR panel heater：temperature control: 3 levels　Hot-air：temperature control: 3 levels
Operation panel 10-inch touch panel
Irradiation distance of heater 50mm–120mm from conveying surface
